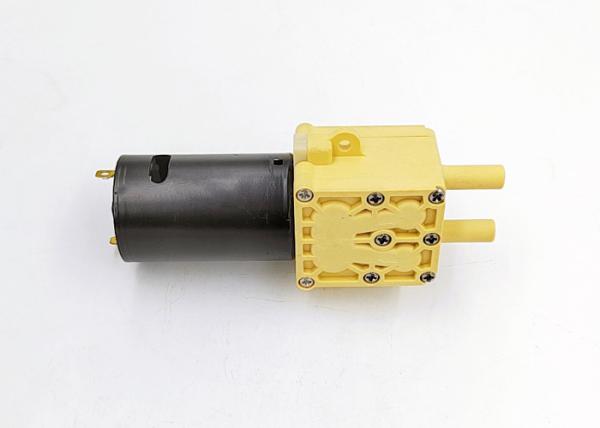

Load Current 350mA Pressure Diaphragm Pump DC Motor 6V 9V 12V 24V
1.2L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
pressure diaphragm mini massage pump with high pressure and vacuum
| Model | No-load current(mA) | The load current(mA) | Rated flow (L/M) | Vacuum(Kpa) | Self-priming height(M) | lift
(m) |
size
(mm) |
weight
(g) |
| SS512-1502-1500 | 56 | 110 | 1 | 15 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-15B-2000 | 120 | 180 | 1.1 | 14 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-101-3000 | 140 | 200 | 1.15 | 8 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-202-2900 | 310 | 350 | 1.2 | 8 | >1 | 5 | 128.8*54*42 | 375 |
| SS524-15A-2500 | 70 | 110 | 1.4 | 13 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-15B-2500 | 300 | 420 | 1.7 | 13 | >1 | 5 | 128.8*54*42 | 375 |
| SS524-202-3000 | 150 | 220 | 2 | 12 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-20A-2800 | 180 | 450 | 2.1 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-203-2700 | 220 | 550 | 2.2 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS524-203-2900 | 230 | 570 | 2.3 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-203-3000 | 220 | 470 | 2.4 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS524-202-3700 | 120 | 340 | 2.5 | 20 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-203-2900 | 130 | 540 | 2.6 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-203-3700 | 250 | 750 | 2.7 | 25 | >1 | 5 | 128.8*54*42 | 375 |
| SS512-204-3700 | 700 | 1.2 | 3 | 18 | >1 | 5 | 128.8*54*42 | 375 |
SS555 brush series water pump has 4 kinds of voltage:6V, 9V,12V and 24V
Above paramter just for your reference |
brush vacuum cupping pump's parameter and features
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintenance free
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position.
Application of Pressure Diaphragm Pump
1. breast pump
2. Beauty equipment
3. Vacuum packaging machine
4. Double-headed electric breast pump
5. Portable ozone sterilizer
6. Vacuum sealing machine
7. Beauty massage
